Wasp Electrode, with cable
Non-returnable
£187.00 - £212.00
Wasp stimulation electrodes are used in research settings to administer a quick and intense transcutaneous electrical shock to human participants, to evaluate pain threshold. The cables attached to these wasp electrodes can be customised with a range of cable types and termination configurations to suit different experimental requirements.
Variant
Choose Quantity
Product Details
Specifications

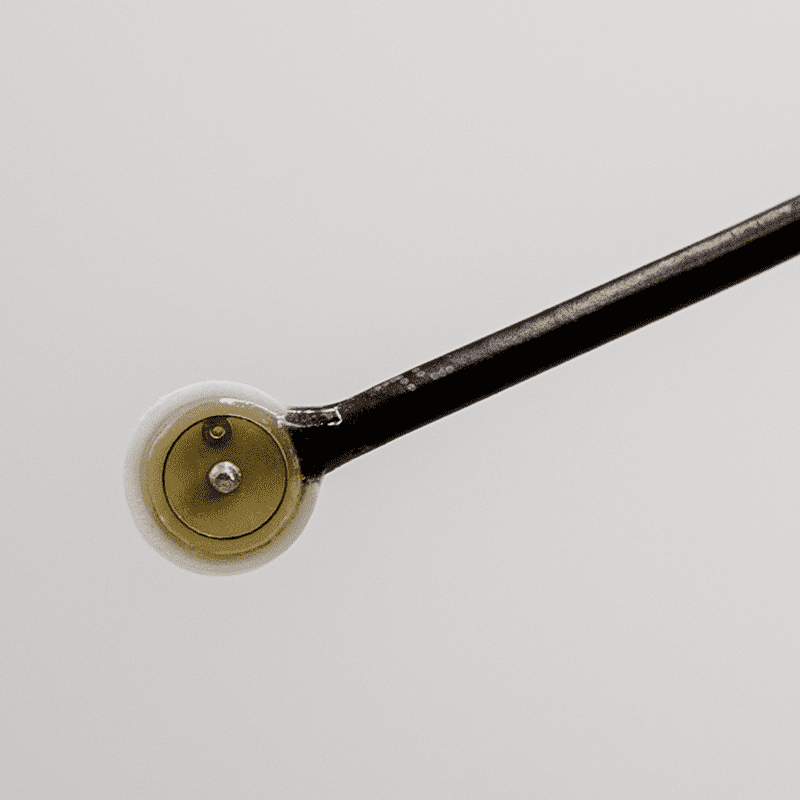

6.5mm outer ring diameter.
2.0mm inner ring diameter, with platinum pin set at 0.5mm (±0.25mm) height.

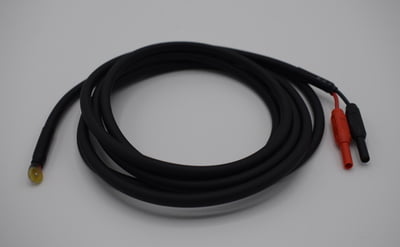

Connection wires are supplied, already attached to the electrode (standard 2m length; different lengths available on request). There are three cable options:
- Mini-Coax RG174, multi stranded inner conductor (RECOMMENDED)
- Audio-grade, screened wire, 1.6mm OD
There are a further four options for wire termination:

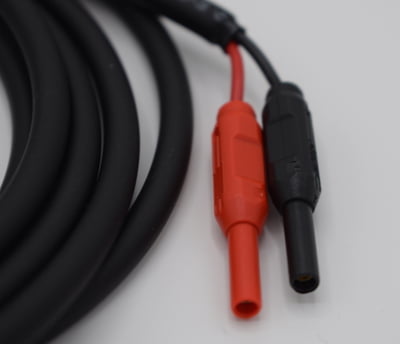

- 4mm Banana Plug
- 4mm Touch Proof Socket

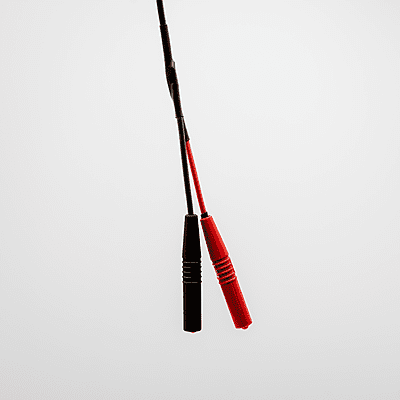

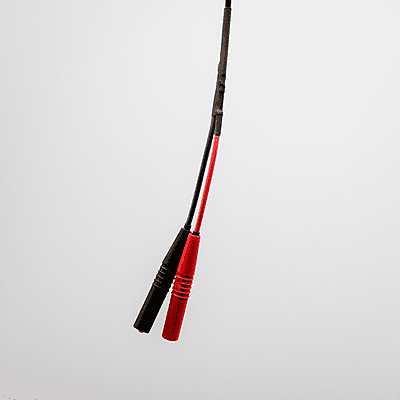

- 1.5mm Touch Proof Socket
- Bare end - cut flush to the insulation
Electrodes also available individually, see Wasp Electrodes
